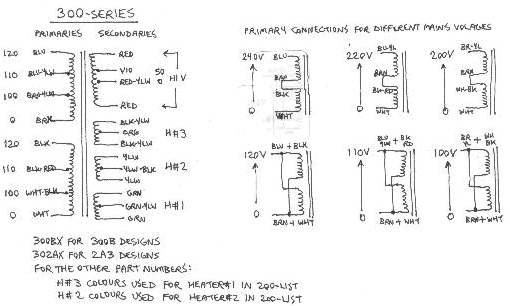

300-series UNIVERSAL PRIMARY CLASSIC TRANSFORMERS
These units have
the same basic specifications as the 200-series, except for dual tapped
primaries for world-wide mains compatability, and, a 50V bias tap on
the plate winding. There are two units that are unique to this series,
with specs listed below. For the remainder of the series, refer to the
200-series listing above.
| Ham# |
VATOTAL |
H#1 |
H#2 |
H#3 |
Plate |
Mass |
| 300BX |
280VA |
6V3ct-37.8VA |
5Vct-15VA |
5Vct-6VA |
800Vct
(250mADC-RATED) |
15 lbs. |
| |
|
6A |
3A |
1A2 |
400V-553mA
or 800V-277mA |
|
| |
|
|
|
|
560VDC
-390mADC 1k2VDC
-195mADC |
|
| |
|
|
|
|
|
|
| 302AX |
198VA |
6V3ct-37.8VA |
5Vct-15VA |
2V5ct-6.3VA |
600Vct
(200mADC-RATED) |
13 lbs. |
| |
|
6A |
3A |
2A5 |
300V-463mA
or 600V-231mA |
|
| |
|
|
|
|
424VDC
-327mADC 848VDC
-162mADC |
|
Other numbers available
(refer to 200-series for specs, replace 3 with 2):
363CX
369AX /BX /EX /GX
370AX /BX /FX /HX
372BX /FX JX
373X /BX
374BX
378X /CX
